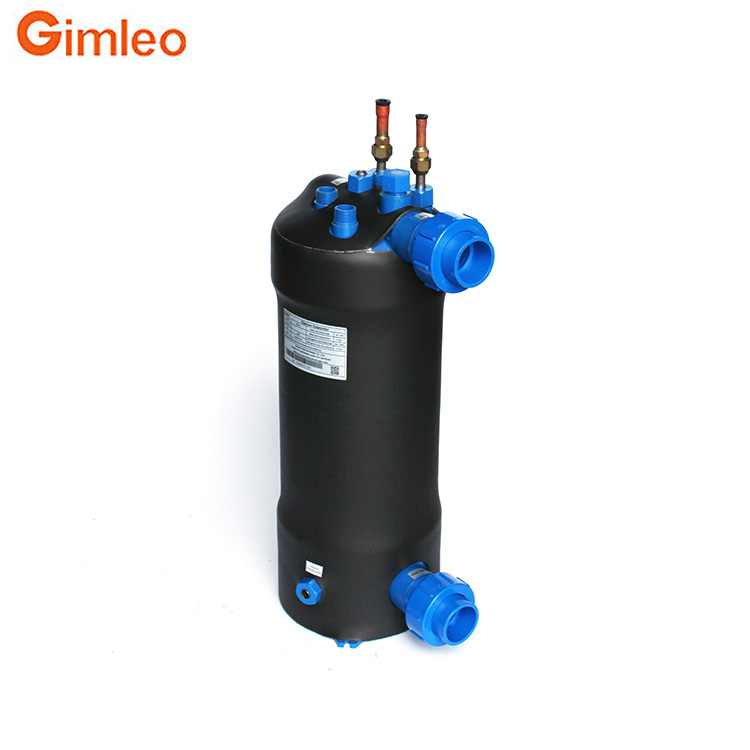

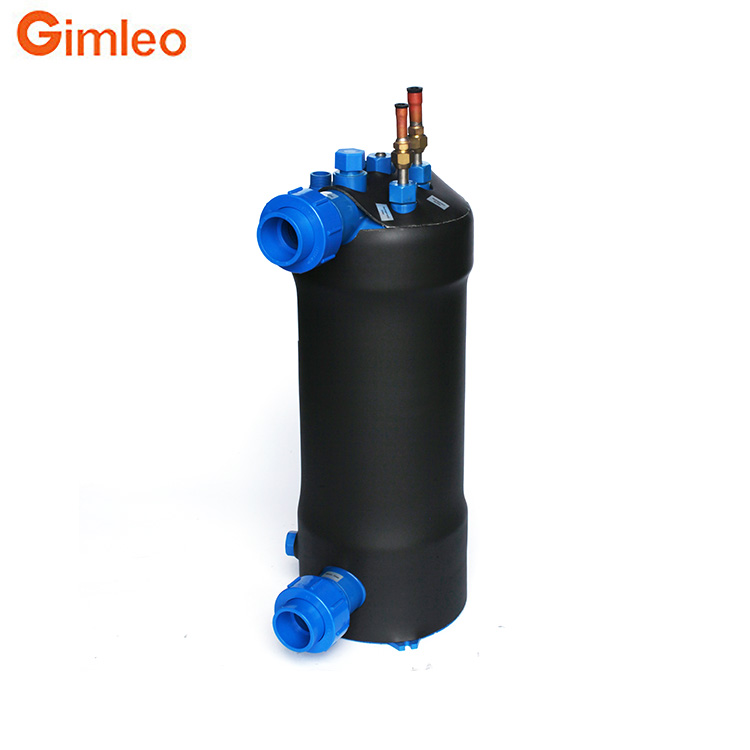

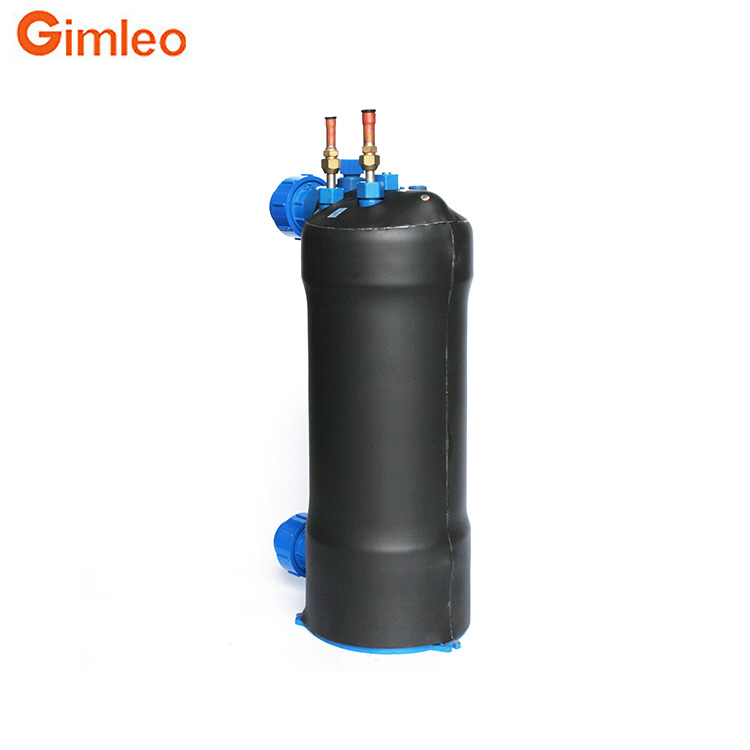

ETA-3 Chiller Titanium Evaporator Energy Saving With 12.7mm Refrigerant Inlet

Name: ETA3 Chiller Titanium Evaporator Energy Saving With 127mm Refrigerant Inlet
Brand: Gimleo
Price: 448.00 USD

Quality ETA-3 Chiller Titanium Evaporator Energy Saving With 12.7mm Refrigerant Inlet wholesale

Place of Origin : Guangdong, China

Brand Name : Gimleo

Packaging Details : pallet, crate,plywood cases

Supply Ability : 2000 Unit/Units per Month

Price : $448.00/units 1-49 units

Applicable Industries : Hotels, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops

Showroom Location : None

Video outgoing-inspection : Not Available

Machinery Test Report : Not Available

Warranty of core components : Not Available

Core Components : /

Condition : New

Structure : Smooth Titanium Tube, Coil Heat Exchanger

Liquid Flow Rate : 2.0 m3 per hour

Maximum Working Pressure : Refrigerant side 5.2MPa; Water side 2.5MPa

Voltage : OEM

Weight : 8.6 KG

Dimension(L*W*H) : Multiple choices

Warranty : 1 Year

Working Temperature Range : 0~45℃

Key Selling Points : Energy Saving

Product Name : Heat Exchanger Chiller Evaporator

Application : Swimming Pool Boiler

Titanium Grade : TA1

Water flow (M3/h) : 2.0

Inner Dia. of Water connector : 50mm

Refrigerant inlet : 12.7mm

Refrigerant outlet : 15.88mm

Dimension(LxWxH) : 340x240x690 mm

Net Weight : 8.6 kg

Contact Now

ETA-3 Chiller Titanium Evaporator With 12.7mm Refrigerant Inlet And Multiple Choices

Products Description

ETA-3 Chiller Titanium Evaporator Energy Saving With 12.7mm Refrigerant Inlet

Product name	PVC Titanium Heat Exchanger (Cool mode)
Type	ETA series
Model number	ETA-3
Cooling capacity	7.5kw
Water flow	2.0m³/h
Use as	Evaporator

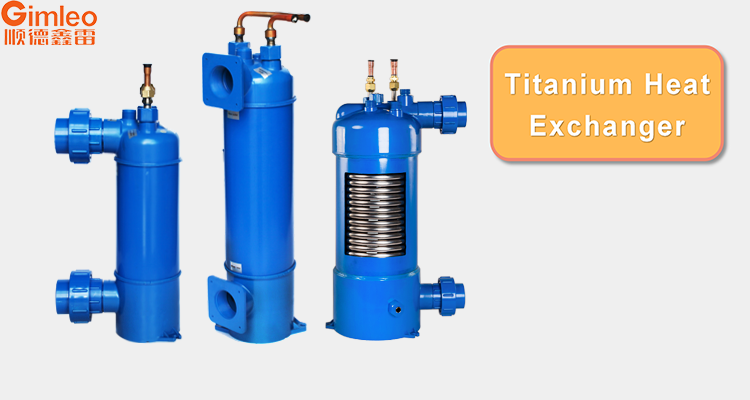

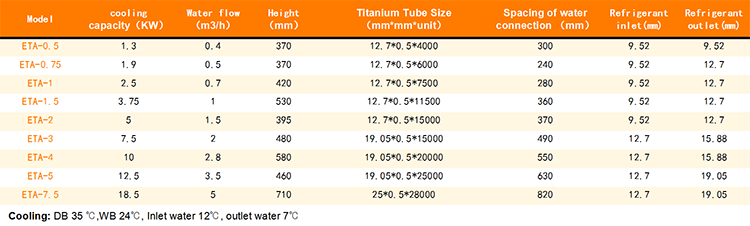

Series Products

Product Introduction :

Titanium has the super strong corrosion resistant ability. Our titanium heat exchanger use seamless pure titanium tube as heat conductor, exhibits outstanding resistance to corrosion in a wide range of aggressive media.

ETA series heat exchanger is mainly used as evaporator.It has great refrigeration efficiency,commonly used in seafood,fish ponds and cooling,food refrigeration,chemical media,cooling and other equipment.

Product Features :

• Self-patented technology.

• It has great refrigeration efficiency.
• Seamless pure titanium tube has super strong corrosion proof ability and high intensity.
• Due to its perfect structure design, the PVC shell can stand high working pressure. The max working pressure in water side can be 2.5 MPa. Titanium tube can stand 5.2MPa high pressure.

• Its loading capacity can pass the CE, UL, ETL requirement, 100,000 times alternating pressure test shows it can be used more than 20 years

Product material :

[ The heat transfer tube ]: Seamless pure titanium tube . Thickness 0.6 mm. The Grade is TA1

[ Shell ]:high quality PVC material . All the parts RoHS conformance.

Details Images

Product Application

Product Categories

Company Profile

Company Introduction

Gimleo Heat Exchanger Co., Ltd. is located in Shunde , Foshan city , a professional manufacturer of energy- saving heat exchanger equipment integrated with R& D, manufacture, sales and service.

Gimleo, founded in 2005, is based on high tech and high quality with advanced manufacturing facilities, testing equipment along with many high-educated professional staff; especially we’ve established a heat exchange capacity-testing lab ahead of others in the industry.

Our products cover high efficiency tube in shell heat exchanger, titanium heat exchanger, nickel-copper tube in shell heat exchanger, coaxial heat exchanger, etc. which can be widely used in swimming pool equipment, aquarium chiller, marine refrigerant units, air source heat pump, water source heat pump, aquaculture, pharmacy, food industry, electroplating industry and heat recovery from the waste water or exhaust gas.

We deeply realize the importance of scientific management and technical innovations.Firstly Gimleo has passed the ISO 9001 improving and strengthening the entire quality control process from R& D to sales.Meanwhile, the company establishes the perfect information platform for the whole manufacturing and R& D system-ERP. In 2016 .We had passed 174 environmental REACH testing and certification.

After several years of development, Gimleo has become a leading domestic enterprise in manufacturing heat exchangers, in great cooperating relationships with about 150 companies.
